DanBi Electrical Interlock Systems (EIS) provide critical safety protection across multiple industries. Each system features UL Listed, industrial-grade components with programmable microprocessors designed to prevent accidents, ensure regulatory compliance, and protect lives. Call us at 321-632-COLD (2653) and you can rest assured our technicians have the skills and tools to get the job done.

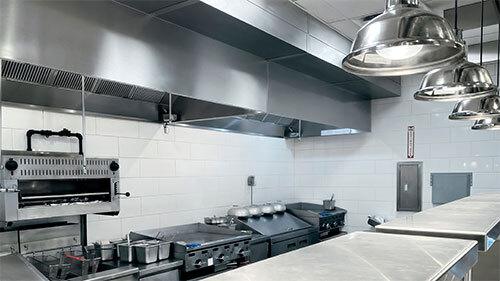

Application: Commercial kitchen fire suppression and ventilation control
The DanBi 3000 Series uses a programmable microprocessor to monitor temperature under the hood, exhaust fan status, make-up fan operation, and electrical circuits. The system provides automated control for normal operation and maintenance while ensuring proper fire suppression response.
Key Functions:
Kitchen fires require an immediate, coordinated response. Without proper interlocking:
NFPA 17A and NFPA 96 Requirements:
Current Fire Safety Requirements per NFPA 17A and NFPA 96:
Application: Marina and dock electrical safety systems
The DanBi 8675 Series features a programmable microprocessor that monitors current-sensing devices and automatically disconnects power during ground faults. Installed at the shoreline, it provides comprehensive protection for feeders, subpanels, shore power, and downstream circuits.
Key Functions:
Electric Shock Drowning (ESD) is a real danger at marinas and docks. The 2023 NEC now requires ground fault protection on all wiring at docking facilities, not just receptacles. Most existing marinas are non-compliant and expose users to substantial risks.
National Electric Code (NEC) 2023:
National Electrical Code (NEC) 2023:
555.1 ScopeApplication: Pool systems requiring a salt chlorinator and heater interlocking with variable speed pumps
The DanBi 9020 Series provides GFCI protection independent of panel manufacturer and pump type. It interlocks salt chlorinators and pool heaters with variable speed pumps by detecting actual pump operation rather than relying on timers or flow switches.
Key Functions:
National Electric Code (NEC) 2023:
Department of Energy (DOE):
Manufacturer Requirements: All major manufacturers (Jandy, Pentair, Hayward) require interlocking between salt chlorinators, heaters, and pumps to prevent equipment damage and safety hazards.
National Electric Code (NEC) 2023
Manufacturer Requirements
The following are excerpts from the installation manuals for several manufacturers: JANDY Jandy AquaPure® Electronic Salt Water Chlorinator Installation and Operation Manual “The power pack must be interlocked/interconnected with the pool pump motor power source to ensure that the chlorinator only operates when the pool pump is operating. The flow sensor feature of the chlorinator cell is intended to be used as a backup only and should not be used as the sole source of flow detection.” “Power supply must be interconnected with Pool Pump motor power source. This insures the chlorinator and pool pump will turn on and off together.” Jandy VS FloPro Variable-Speed Pumps Installation and Operation Manual RISK OF ELECTRIC SHOCK, FIRE, PERSONAL INJURY, OR DEATH. Connect only to a branch circuit that is protected by a ground-fault circuit interrupter (GFCI). Contact a qualified electrician if you cannot verify that the circuit is protected by a GFCI. Jandy JXi Gas-Fired Pool and Spa Heater Installation and Operation Manual “NOTE: If you install a time clock to control the filter pump operation, it is recommended that the time clock have its own low voltage (Fireman’s) switch to turn off the heater before turning off the pump. The switch should shut off the heater about 15 minutes before the filter pump shuts off…To avoid damage to the heater, do not connect the power supply of the heater to the output side of the clock if your time clock simply interrupts the high voltage power supply or has a high voltage output…The blower must be allowed to run for 45 seconds after the heater shuts off.” PENTAIR Pentair INTELLICHLOR® POWER CENTER Installation and User’s Guide “CHLORINE GAS BUILDUP CAN OCCUR WITH IMPROPER WIRING: To reduce the risk of personal injury the IntelliChlor® Salt Chlorinator Power Center must be installed on and wired to the load side of the time clock, electronically controlled switch, or relay load side, so that it will receive power only when the pool pump is on. Otherwise, dangerous chlorine gas buildup can occur. The IntelliChlor Salt Chlorinator should never be energized when the pool pump is OFF and water is not flowing through the unit.” “The IntelliChlor Salt Chlorinator Power Centers must be interconnected with the pool pump motor power source. This ensures the IntelliChlor Salt Chlorinator and pool pump will switch on and off together.” “The power supply must be interconnected with pool pump motor power source. This insures the IntelliChlor chlorinator and pool pump will switch on and off together.” Pentair INTELLIFLO Variable Speed Pump Installation and User’s Guide “RISK OF ELECTRICAL SHOCK. Connect only to a branch circuit protected by a ground-fault circuitinterrupter (GFCI). Contact a qualified electrician if you cannot verify that the circuit is protected by a GFCI.” Pentair MasterTemp Heater Installation and User Guide “Any switches in the pump circuit (including circuit breakers) that can disconnect the pump must also disconnect the heater.” HAYWARD Hayward® Aqua Rite Pro Electronic Chlorine Generator Owner’s Manual “Input Power: Wire the AquaRite Pro to the LOAD SIDE of the filter pump timer. It is very important that the AquaRite Pro is powered only when the pump is running.” Hayward 1.65 THP VS Pump Family Owner’s Manual Risk of Electric Shock. In accordance with the National Electric Code (NEC), connect only to a branch circuit protected by a ground-fault circuit-interrupter (GFCI). Contact a qualified electrician if you cannot verify that the circuit is protected by a GFCI. The unit must be connected only to a supply circuit that is protected by a ground-fault circuit-interrupter (GFCI). Hayward Pool-Spa Gas Heaters Installation and Operations Manual “The electrical equipment must be connected only to a supply circuit that is protected by a ground-fault circuit-interrupter (GFCI)…The operation of the heater with the pump shut off could cause heater overheating and fire. Never operate heater with the pump shut off.”Application: Commercial and residential pools requiring comprehensive safety monitoring
The DanBi 9510 Series features the most advanced microprocessor system, monitoring current, vacuum pressure, and flow rates. It includes flow sensors for GPM verification, vacuum sensors for entrapment prevention, and HMI components for real-time monitoring and remote access.
Key Functions:
National Electric Code (NEC) 2023: Complete GFCI and interlock compliance
Florida Health Department (Chapter 64E-9):
Virginia Graeme Baker Pool & Spa Safety Act: Anti-entrapment system requirements with automatic pump shut-off
National Electric Code (NEC) 2023
680.5 Ground-Fault Circuit-Interrupter (GFCI) and Special Purpose Ground-Fault Circuit-Interrupter (SPGFCI) Protection
(A) General.The GFCI and SPGFCI requirements in this article, unless otherwise noted, are in addition to the requirements in 210.8.
(B) 150 Volts or Less to Ground
Where required in this article, ground-fault protection of receptacles and outlets on branch circuits rated 150 volts or less to ground and 60 amperes or less, single- or 3-phase, shall be provided with a Class A GFCI.
(C) Above 150 Volts to Ground
Where required in this article, ground-fault protection of receptacles and outlets on branch circuits operating at voltages above 150 volts to ground, not exceeding 480 volts phase-to-phase, single- or 3-phase, shall be provided with SPGFCI protection not to exceed 20-mA ground-fault trip current.
680.21(D) Pool Pump Motor Replacement
Where a pool pump motor in 680.21(C) is replaced or repaired, the replacement or repaired pump motor shall be provided with ground-fault protection complying with 680.5(B) or (C), as applicable.
680.28 Gas-Fired Water Heater
Circuits serving gas-fired swimming pool and spa water heaters operating at voltages above the low-voltage contact limit shall be provided with GFCI protection.
110.3(B) Installation and Use
Equipment that is listed, labeled, or both, or identified for a use shall be installed and used in accordance with any instructions included in the listing, labeling, or identification.
Office of Energy Efficiency and Renewable Energy, Department of Energy (DOE)
Per Docket No. EERE-2017-BT-STD-0048, variable-speed pool pumps will be mandatory for powering the filtration system of any spa or pool. This is due to a new U.S. Department of Energy regulation that will require all pumps past a certain horsepower rating to meet an efficiency threshold effective July 19, 2021. This applies to motors between one and five horsepower used in pool and spa applications.
Florida Health Department Regulations Chapter 64E-9
Virginia Graeme Baker Pool and Spa Safety Act and Florida Statutes Chapter 514
A public swimming pool or spa must be equipped with an anti-entrapment system or device which includes an automatic pump shut-off system. Virginia Graeme Baker was a seven-year-old girl who drowned when she was trapped underwater by the powerful suction of a hot tub drain. Consequently, the Virginia Graeme Baker Pool & Spa Safety Act (P&SS Act) was enacted by Congress and signed by President George W. Bush on December 19, 2007. Designed to prevent the tragic and hidden hazard of drain entrapments and eviscerations in pools and spas, the law became effective on December 19, 2008.
| Feature | DanBi 3000 | DanBi 8675 | DanBi 9020 | DanBi 9510 |
|---|---|---|---|---|
| Application | Kitchen Hoods | Marinas/Docks | Pool Salt Systems | Advanced Pool Systems |
| Primary Safety Focus | Fire Suppression | Electric Shock Drowning | Chlorine Gas/GFCI | Comprehensive Pool Safety |
| Microprocessor Control | ✓ | ✓ | ✓ | ✓ Advanced |
| Auto-Reset Capability | — | ✓ | ✓ | ✓ |
| Remote Monitoring | — | — | — | ✓ |
| Flow Monitoring | — | — | — | ✓ |
| Vacuum Monitoring | — | — | — | ✓ |
| Variable Speed Pump Ready | — | — | ✓ | ✓ |
All systems feature UL Listed components, universal compatibility, and meet current regulatory requirements for their respective applications.
For detailed specifications and installation guidelines, download the individual product brochures for each system.
Whether it’s a small job or more extensive electrical work, we are confident our highly trained technicians can resolve the issue. We offer a solution for both marine and boat electrical work to meet your needs. Contact us to schedule an appointment today.
